Vacuum Valve
Degassing with big volume and improve quality immidiately.

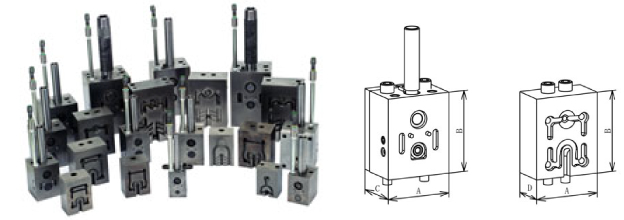

EV Series

Feature
- Abundant line up of products which can applicate to any die casting.
- Abundant model which can applicate to from 100t die casting machine to 2000t die casting machine.
- Vacuum valve of this series has all the basic functions for vacuum die casting.
| Model / Applicable die casting machine |
Dimensions (A: width / B: height) |
Dimensions (C: fixed depth / D: moving depth) |
|---|---|---|
EV038 Up to 350t |
A:66mm B:85mm |
C:68.7mm D:40mm |
EV056 Up to 650t |
A:75mm B:90mm |
C:70mm D:40.5mm |
EV079 Up to 800t |
A:80mm B:99.3mm |
C:73.7mm D:41mm |
EV113 Up to 1650t |
A:110mm B:150mm |
C:81.7mm D:45mm |
EV154 Up to 2500t |
A:118mm B:160mm |
C:84.7mm D:30.5mm |
EV201 Up to 3500t |
A:125mm B:180mm |
C:87.7mm D:46mm |

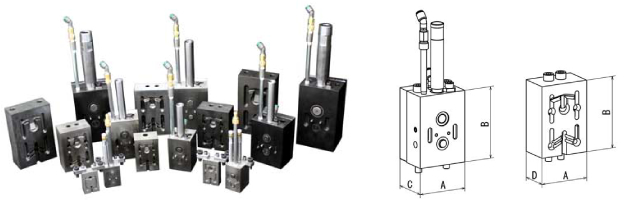

ZM Series

Feature
- Abundant line up of products which can applicate to any die casting.
- Abundant model which can applicate to from 100t die casting machine to 2000t die casting machine.
- Vacuum valve of this series has all the basic functions for vacuum die casting.
| Model / Applicable die casting machine |
Dimensions (A: width / B: height) |
Dimensions (C: fixed depth / D: moving depth) |
|---|---|---|
ZM038 Up to 350t |
A:60mm B:92.5mm |
C:60mm D:40mm |
ZM056 Up to 650t |
A:80mm B:115mm |
C:65mm D:50mm |
ZM079 Up to 800t |
A:90mm B:120mm |
C:70mm D:50mm |
ZM113 Up to 1650t |
A:100mm B:145mm |
C:75mm D:50mm |
ZM154 Up to 2500t |
A:105mm B:162.5mm |
C:80mm D:50mm |
ZM201 Up to 3500t |
A:105mm B:180mm |
C:90mm D:50mm |


| Model / Applicable die casting machine |
Installation diagram |
|---|---|
ZM038 Up to 350t |
Installation diagram(opens a PDF) |
ZM056 Up to 650t |
Installation diagram(opens a PDF) |
ZM079 Up to 800t |
Installation diagram(opens a PDF) |
ZM113 Up to 1650t |
Installation diagram(opens a PDF) |
ZM154 Up to 2500t |
Installation diagram(opens a PDF) |
ZM201 Up to 3500t |
Installation diagram(opens a PDF) |


Explanation of vacuum valve structure and action summary
01Preparation aciton

After mold is closed, the lock of valve and piston is relieved and gets ready to do vacuum suction.
02Degassing

Gas of cavity discharges from the gate which connects valve and mold liner. When molten metal collides on piston, valve is backward at the same time.
03Cleaning

When mold is open, power of springs push lever forwardly and piston and valve move forwardly at the same time.
Attention
Vacuum valve closes smoothly at high speed intensified pressure die casting mode. During try shot or low speed ・high speed die casting mode, valve cannot close normally.
Valve protection function(Valve protection air)
During try shot or low speed・high speed die casting, valve cannot close normally.
Please supply air to inside of valve to keep valve closing all the time.
Signal output from die casting machine ensures this function works automatically.
- Action summary
Please connect valve protection air tube to vacuum valve like picture shows below.
Air supply collides on cylinder to close valve.
Please make sure air pressure is about 0.45 MPa

Stable air(Corresponding model only)
In order to get stable action of vacuum valve, lubricant spray and air blow to cool valve and piston is necessary.
Like picture below shows air goes out from two places.

Confirmation subjects of trial manufacture
Please confirm checkpoints as below before usage.
For your safety, please check firstly.
Maintenance
Please do maintenance regularly.
We recommend our customer to do maintenance after every 48 hours usage.
Maintenance ensures stable action and prolongs lifespan of vacuum valve.
If the newest maintenance manual of vacuum valve is necessary, please send us mail.
Contact
E-Mail:die-eg@die-eg.com
Content of vacuum valve maintenance
Dismantle and clean vacuum valve parts is free.
If there is necessity to exchange consumption parts of valve, we will send our customer quotation and exchange parts after we get confirmation from our customers.
Regular maintenance of valve can prolong lifespan of vacuum valve.
Maintenance sequence shows as below.
01Contact
Please contact to the person in charge.
If you bought our product from trading company, please contact trading company firstly before sending product to our company.
TEL:+81-268-72-8150
FAX:+81-268-72-8151
※After we receive products which needs maintenance, we will check it carefully and send you quotation depends upon the necessity of consumption parts exchange.
02Send your product
Please send your product to the address as below.
〒386-2202 775-11 Motohara Sanada machi Ueda city Nagano prefecture.Japan
DIE ENGINEERING CORPORATION
Person in charge(please note the model of valve ,different model has different person in charge)
If there is no necessary to change any parts, after free regular maintenance we will send products back to you in 5 days.
(Transportation fee is afforded by our customer)
