Chill Vent
CVV series has dots design which got patent to help cooling the molten metal. It is best design for vacuum die casting.

CVV Series
For hot chamber

Feature
- Compact design
- Best design for vacuum suction
- Best design for extrusion pin
- Easy to do maintenance

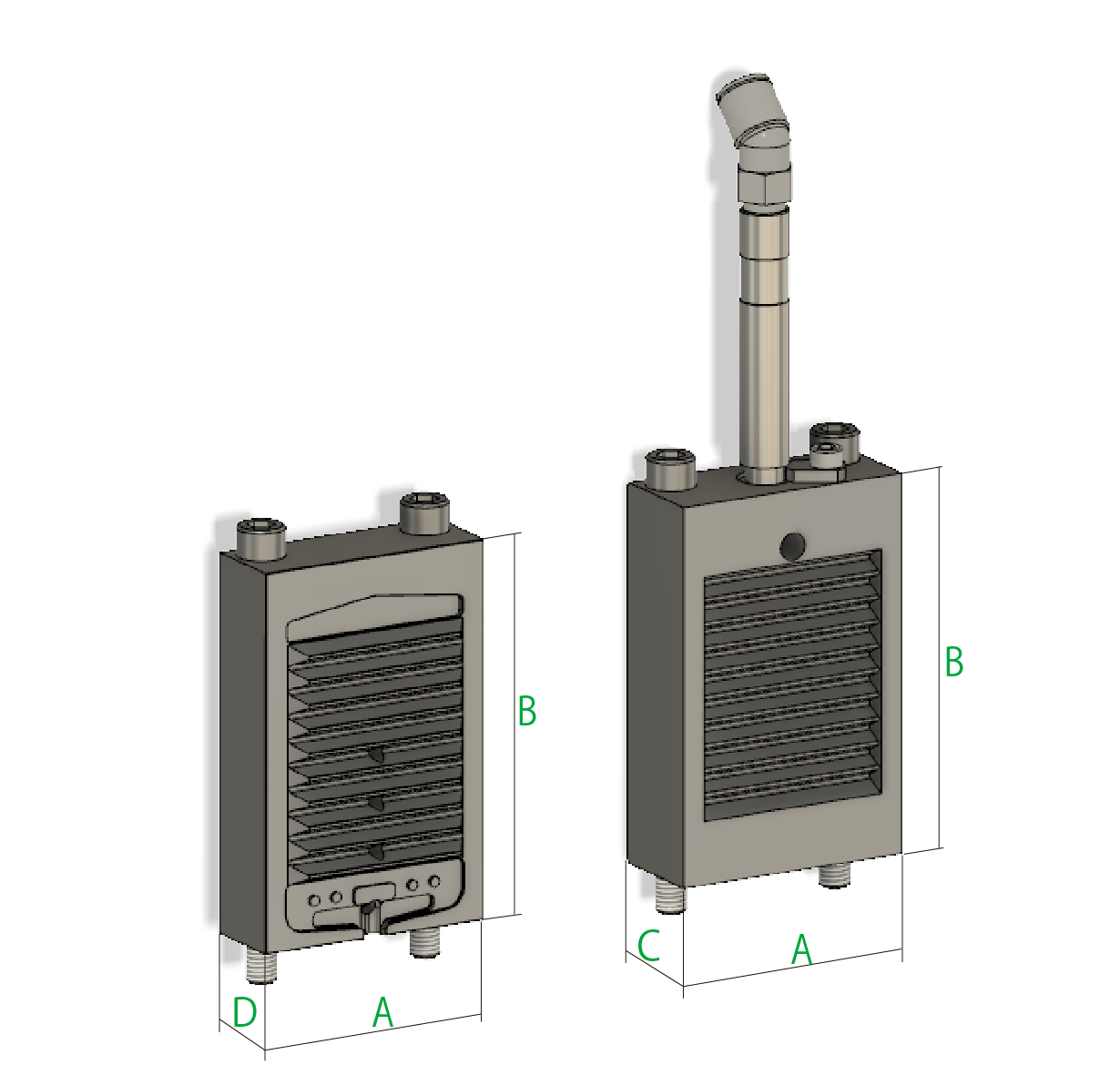

| Model / Applicable die casting machine |
Dimensions (A: width / B: height) |
Dimensions (C: fixed depth / D: moving depth) |
|---|---|---|
CVV30-DZ Up to 15t |
A:30mm B:68mm |
C:18mm D:14mm |
CVV40-DZ Up to 15t |
A:40mm B:83.5mm |
C:20.5mm D:18.5mm |
CVV50-DZ Up to 60t |
A:50mm B:83.5mm |
C:20.5mm D:18.5mm |
CVV60-DZ Up to 150t |
A:60mm B:85mm |
C:20.5mm D:18.5mm |
| Model / Applicable die casting machine |
Installation diagram |
|---|---|
CVV30-DZ Up to 15t |
Installation diagram(opens a PDF) |
CVV40-DZ Up to 15t |
Installation diagram(opens a PDF) |
CVV50-DZ Up to 60t |
Installation diagram(opens a PDF) |
CVV60-DZ Up to 150t |
Installation diagram(opens a PDF) |
For cold chamber

Feature
- Compact design
- Best design for vacuum suction
- Best design for extrusion pin
- Easy to do maintenance

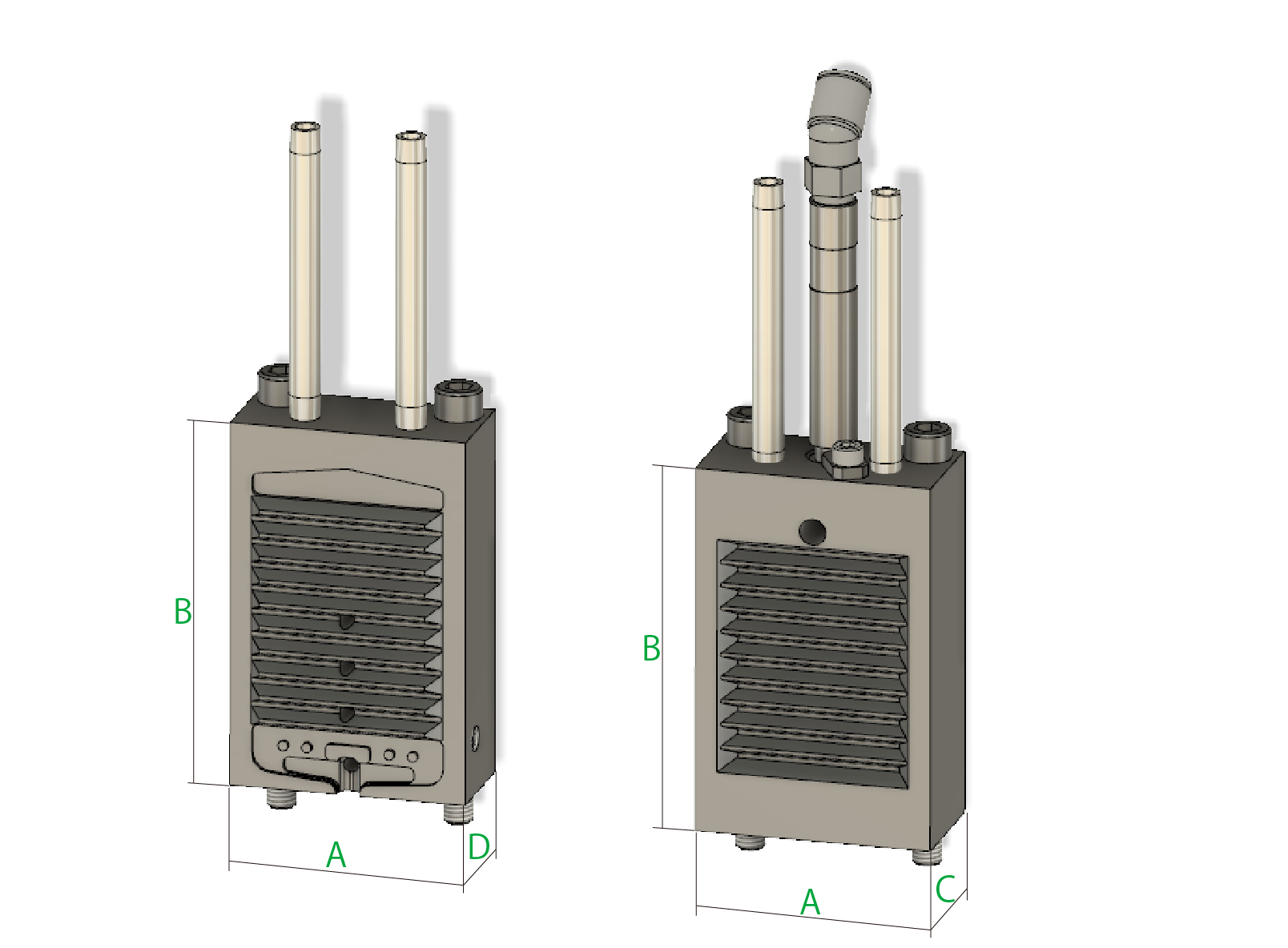

| Model / Applicable die casting machine |
Dimensions (A: width / B: height) |
Dimensions (C: fixed depth / D: moving depth) |
|---|---|---|
CVV60-D Up to 250t |
A:60mm B:125mm |
C:35mm D:30mm |
CVV80-D Up to 250t |
A:80mm B:125mm |
C:35mm D:30mm |
CVV100-D Up to 350t |
A:100mm B:125mm |
C:35mm D:30mm |
CVV120-D Up to 500t |
A:120mm B:125mm |
C:35mm D:30mm |
| Model / Applicable die casting machine |
Installation diagram |
|---|---|
CVV60-D Up to 250t |
Installation diagram(opens a PDF) |
CVV80-D Up to 250t |
Installation diagram(opens a PDF) |
CVV100-D Up to 350t |
Installation diagram(opens a PDF) |
CVV120-D Up to 500t |
Installation diagram(opens a PDF) |
Note: the applicable DC machine tons is caculated by installing two sets of chill vents on one mold.
Please consult us for installation drawing.
